Brand Name : Headway
Battery Size : 40152, 40152S
Application : Power Tools, Toys, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Forklifts, Uninterruptible Power Supplies, Solar Energy Storage Systems, Electric Power Systems, Electric Wheelchairs, electric vehicles, Electric Bicycles/Sc
Model Number : HW40152S
Weight : 475g, 475±5g
Place of Origin : Zhejiang, China
Recommended Discharge Current : 17A
Warranty : 12months
Max. Continuous Current : 45A
Max. Charge current : 30A
Recommended Charge Current : 17A
OEM/ODM : Yes(Accepted)
Color : As pictures
Size : 3.2V 17Ah
Anode Material : LFP
The discharge rate : 15C
Electric Energy : 54.4 Wh
Nominal Voltage | 3.2V |
Nominal Capacity(0.5C,25℃) | 15Ah |
Weight(Approximate) | 475±5g |
Internal Resistance | ≤4mOhm |
Self-discharge rate | ≤2% per month |
1C/1C cycle life | ≥2000 Times |
1C/3C cycle life | ≥1500 Times |
Max. Continuous Current | 45A |
Max. 30 sec. Pulse | 150A |
Cut-off Voltage | 2.0V |
![]() |

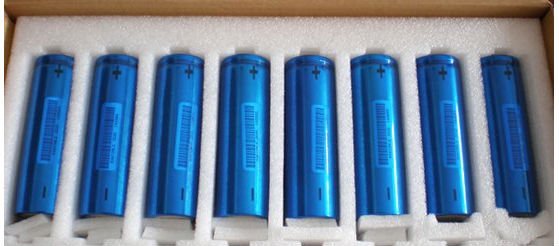

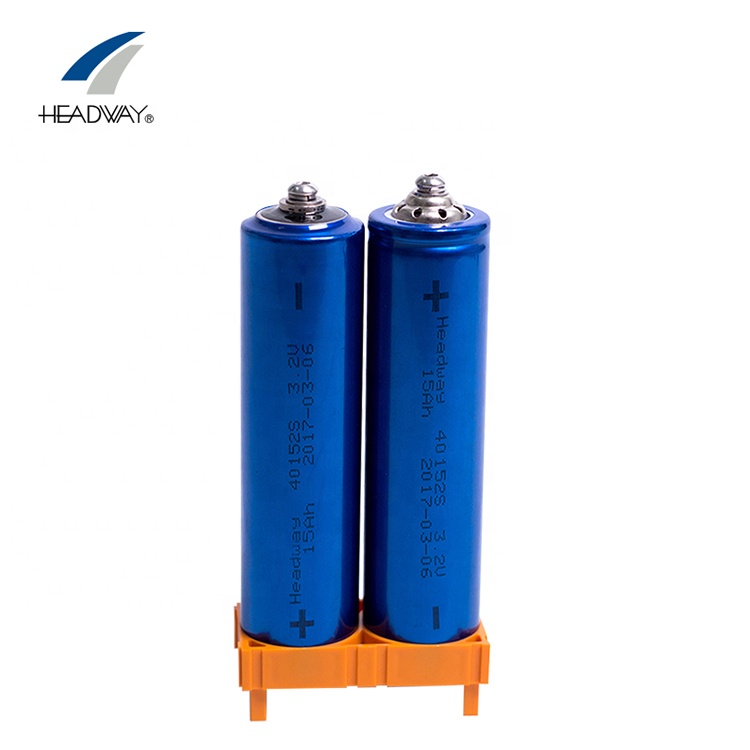

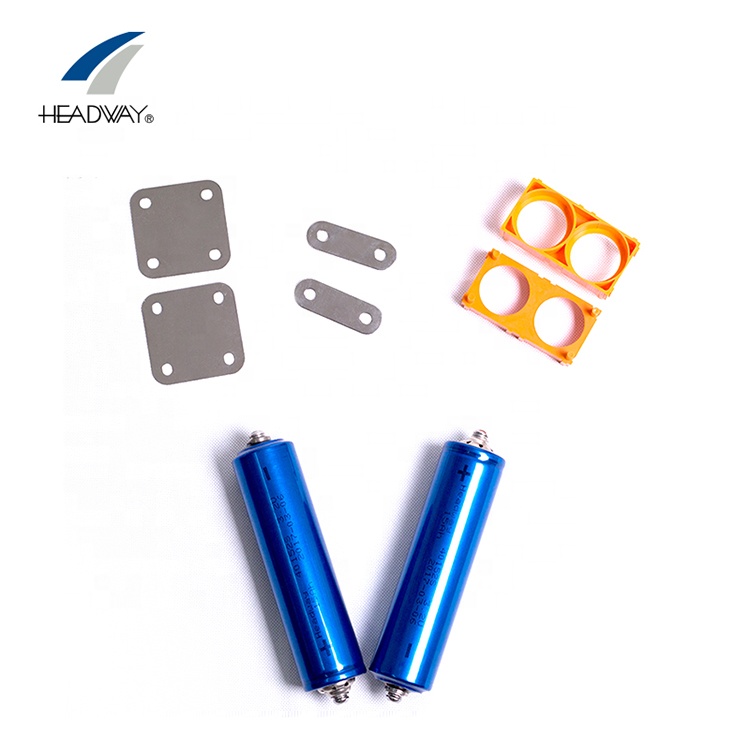

Headway 40152 LiFePO4 Battery 3.2V 15Ah Solar Energy Storage Lithium Ion Battery Consumer Electronics Cell Lithium Ion Battery Images |
